Product

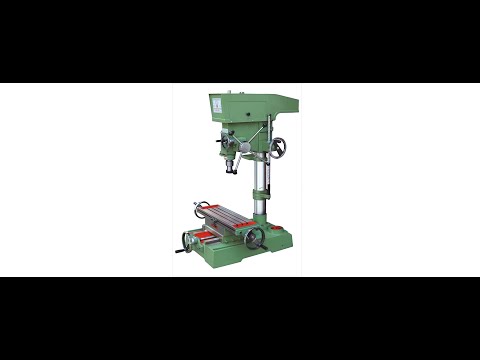

SI-6DMU
Cast : Face Mill : 100mm
Iron : End Mill : 25mm
:Tapping : 22mm
In Mild steel drilling : 35mm
Column Diameter : 114mm
Swing : 560mm
Working Surface : 725 x 224mm
Longitudinal Travel Manual : 340mm
Cross Travel : 305mm
Vertical Travel : 830mm
Quill Travel : 170mm
Spindle Taper : MT - 4
Range Of Spindle Speed : 75 to 2070 RPM
No. Of Spindle Speed : 8
Range of Power Feed : Manual
Distance Spindle To Base : 830mm
Overall Height With Guard : 1780mm
Main Electrical Motor : 1,5 HP
Shipping Case (I x W x H) : 1170 x 915 x 1570mm
Price of the Product
Characteristics of the Product
- Type Drilling cum Milling Machine
- Model SI-6DMU
- Brand Siddhapura Industries
Category of the Product
